Upgrading a control center display is more than swapping a screen. From provincial traffic command centers to emergency management departments, from smart operation centers to corporate boardrooms, the image quality, stability, and installation quality of the display directly determine dispatch efficiency. As a source manufacturer of LED/LCD commercial displays, Stonbel has compiled a set of practical engineering points for COB fine-pitch display installation and pre-cabling in control centers. This article compares new models with older ones across four dimensions—image quality, reliability, delivery, and cost—and combines real project data to provide selection and installation references for weak-current integrators, AV contractors, and security system integrators.
New Product Launch
The monitoring center COB fine-pitch display is a chip-level packaged LED display product from Stonbel for command and dispatch, emergency duty, traffic control and other scenarios. Pixel pitch ranges from P0.7 to P1.8, refresh rate is 3840Hz, protection rating is IP55, and lifespan is no less than 100,000 hours. Compared with the SMD fine-pitch solutions commonly used in early monitoring centers, this generation packages the light-emitting chip directly on the substrate, removing the traditional bracket and wire bonding structure. The screen surface is flatter, more impact-resistant, and easier to design for dust and water protection. For monitoring centers that need 7×24 uninterrupted operation, this structural difference brings not only a change in
Upgrade Points by Dimension
Image quality dimension: The monitoring center COB fine-pitch display pushes pixel pitch down to the P0.7 to P1.8 range. With a 3840Hz refresh rate, image transitions are more natural at close viewing distance. Old SMD screens tend to show graininess when displaying details such as license plates, road conditions and map labels, while the low-brightness high-grayscale performance brought by COB packaging makes dark details more complete. The Sichuan Provincial Public Security Department Traffic Management Bureau project is equipped with 3840Hz high refresh rate and low-brightness high-grayscale
Optimization Points and Value Points

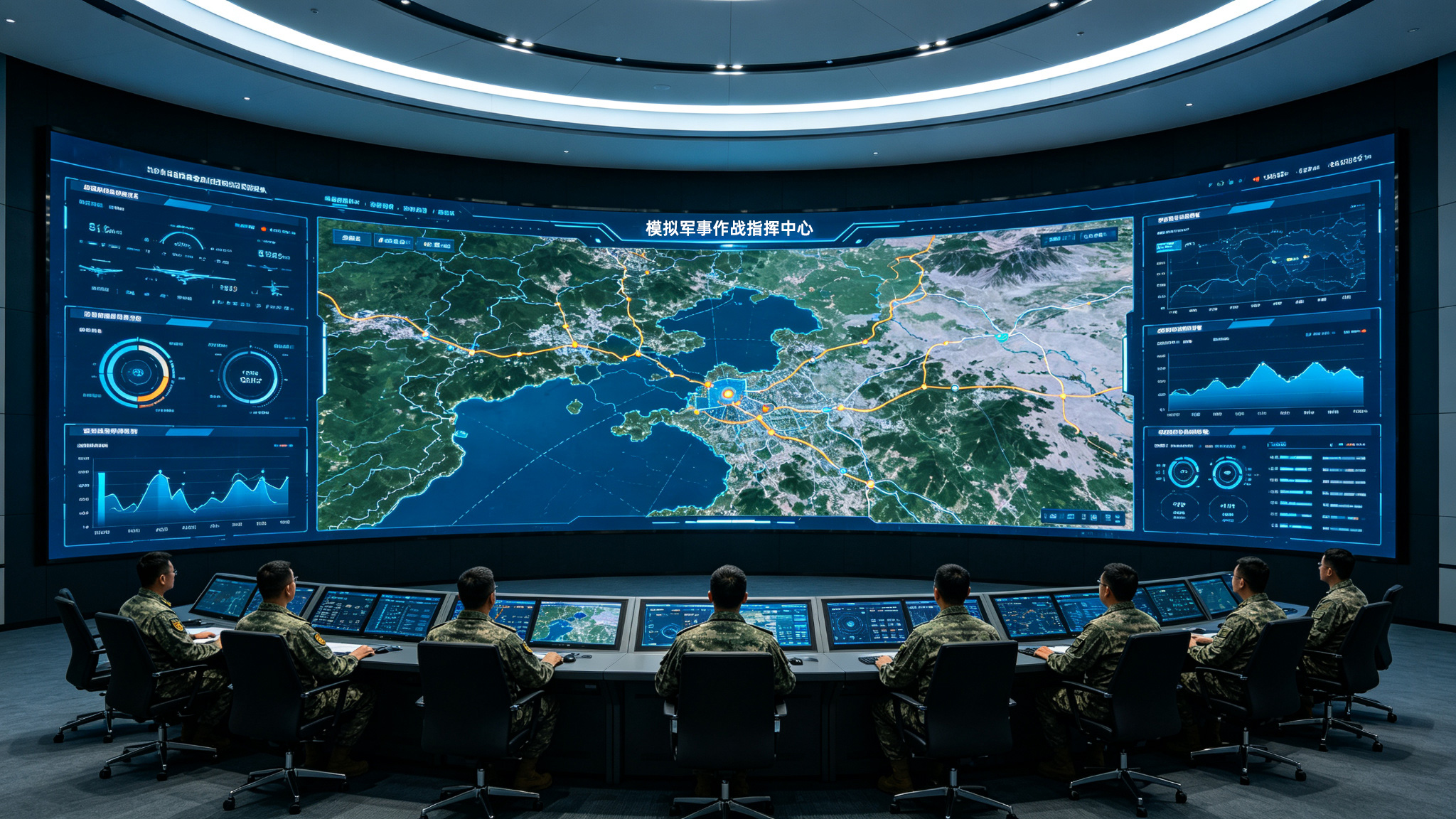

The optimization points of the monitoring center COB fine-pitch display are first reflected in the fault tolerance space for installation and construction. Pixel pitches from P0.9 to P1.2 have high requirements for cabinet flatness, but COB packaging adds a protective layer to the screen surface, reducing the risk of accidental impact damage to lamp beads during on-site handling and installation. The Provincial Military Command Operations Command Center project customized a 90㎡ P0.9 military-grade COB fine-pitch display, adopting a national secret-level encrypted transmission architecture and ultra-high-definition seamless splicing
Selection Recommendations
For the monitoring center COB fine-pitch display, selection should first match pixel pitch with viewing distance. P0.9 to P1.2 is suitable for scenarios where command seats are close to the screen and fine recognition of map labels and license plate details is needed. The Provincial Military Command Operations Command Center and the Guangdong Provincial Department of Emergency Management both use P0.9 solutions. P1.2 to P1.5 is suitable for operation centers and dispatch halls with larger spaces and slightly longer viewing distances. A national-level economic development zone intelligent operation
Q1: What issues should be noted in pre-cabling for monitoring center COB fine-pitch displays?
A: First define signal zoning, then define cable routing. Monitoring center COB fine-pitch displays usually need to access multiple monitoring and data signals. The Sichuan Provincial Public Security Department Traffic Management Bureau project supports simultaneous access of 256 monitoring signals, and the Guangdong Provincial Department of Emergency Management project requires synchronous access of multi-department conference signals. It is recommended to lay cables separately for video surveillance, data visualization and conference signals, reserve backup channels, calculate power distribution margin based on total screen area, and set grounding independently. Install the screen after cabling is completed to avoid later cable additions damaging already leveled cabinets.
Q2: Should a monitoring center COB fine-pitch display choose P0.9 or P1.2?
A: It depends on viewing distance and detail recognition needs. The Provincial Military Command Operations Command Center and the Guangdong Provincial Department of Emergency Management use P0.9 solutions, suitable for scenarios where command seats are close to the screen and fine viewing of maps and monitoring details is needed. The Sichuan Provincial Public Security Department Traffic Management Bureau uses a P1.2 solution, with a 105㎡ screen supporting 256 signal inputs and improving license plate and road condition detail recognition accuracy by 55%. A
Q3: How long does installation and construction of a monitoring center COB fine-pitch display generally take?
A: It depends on screen area and site conditions. The Sichuan Provincial Public Security Department Traffic Management Bureau project used a 105㎡ P1.2 COB fine-pitch display and completed all screen installation and signal commissioning in 15 days through staggered construction coordinated with the business upgrade plan. The Guangdong Provincial Department of Emergency Management project used a 95㎡ P0.9 solution and completed equipment installation and system commissioning during gaps in emergency duty. Construction of monitoring center COB fine-pitch displays also includes signal platform docking and operator training. Integrators should include commissioning and training time in scheduling to avoid compressing installation time and affecting flatness control.
Q4: Are the protection rating and lifespan of monitoring center COB fine-pitch displays sufficient?
A: According to reference materials, the monitoring center COB fine-pitch display has an IP55 protection rating, lifespan no less than 100,000 hours, and refresh rate of 3840Hz. Chip-level packaging gives the screen surface impact resistance and dust and water protection, suitable for 7×24 duty scenarios in monitoring centers. The Guangdong Provincial Department of Emergency Management project large screen system operates stably with zero faults year-round, reducing daily maintenance costs by 62%. The Sichuan Provincial Public Security Department Traffic Management Bureau project equipment operates stably under high load throughout the year, with a fault rate below 0.3%. With intelligent fault detection and remote maintenance, after-sales response time can be shortened to within 30 minutes.
COB fine-pitch display installation and pre-cabling in control centers is essentially a review of the center's workflow. Parameters such as pixel pitch P0.7 to P1.8, 3840Hz refresh rate, IP55 protection rating, and a lifespan of no less than 100,000 hours only translate into dispatch efficiency when applied to cabinet flatness, signal zoning, power distribution margin, and maintenance access. As a source manufacturer of LED/LCD commercial displays, Stonbel provides factory-direct supply, full-process technical support, and resident service points in 31 provinces and municipalities, offering integrators support from selection to installation. Solid pre-cabling ensures the upgrade value of COB fine-pitch displays is steadily realized over long-term operation.
