In LED/LCD commercial display projects, installation and pre-wiring directly determine delivery quality and long-term stability. As a source manufacturer founded in 2009, Stonbel's service system covers the full process from design and production to on-site installation. Based on multiple real projects, this article reviews key control points in installation through data analysis, helping integrators and contractors avoid common problems. Stonbel's service system has accumulated extensive practical experience in installation and pre-wiring, with core parameters and results fully verified. Whether for COB fine-pitch or LCD video walls, Stonbel provides full-process service at source-manufacturer standards, enhancing project quality and client satisfaction.

Core Product Data

Stonbel's industry-leading service system is built on strict control of core parameters. For COB fine-pitch displays, pixel pitch covers P0.7-P1.8, refresh rate reaches 3840Hz, protection rating is IP55, and service life is no less than 100,000 hours. These specifications ensure long-term stability and professional-grade image quality and dynamic performance in high-frequency use scenarios such as command centers and broadcast studios. In the LCD video wall product line, Stonbel offers a 55-inch solution with an ultra-narrow 0.88mm bezel, achieving ≥99.5% brightness/chromaticity consistency across the entire wall, 120% NTSC color gamut, and meeting broadcast-grade 4K standards. These parameters are not isolated; they are closely tied to every step of installation. For example, IP55 protection requires proper sealing of the cabinet frame

Project Outcomes

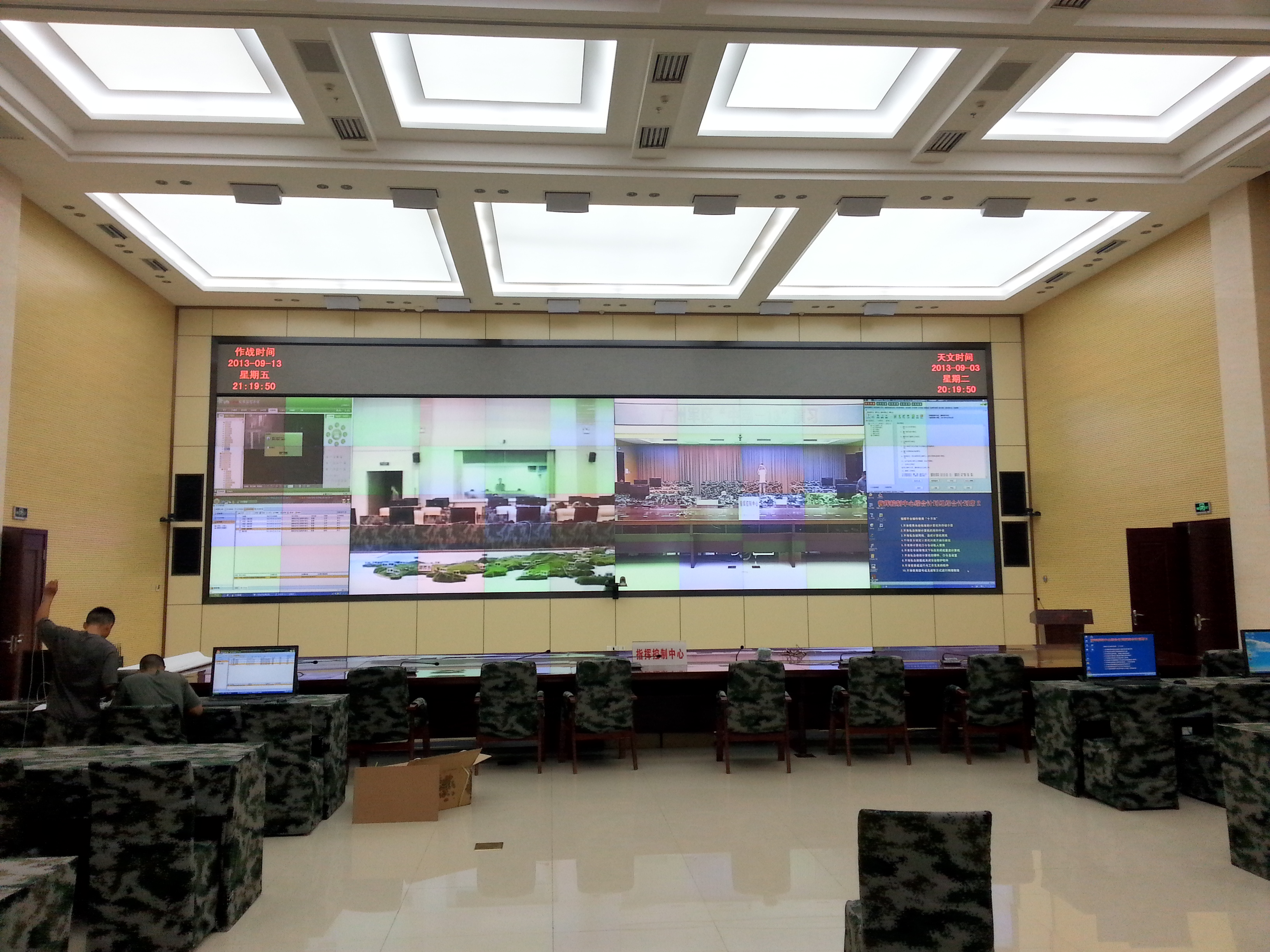

For the Shenzhen Municipal Government Service Data Administration's Smart Government Command Center, Stonbel provided an integrated solution with industrial-grade storage and edge inference servers, fully compatible with the fine-pitch LED display. Project delivery time was reduced from 6 months to 3 months, hardware procurement costs dropped by 22%, and incident response time decreased from 15 minutes to 3 minutes. This efficiency was enabled by standardized upfront cabling design—all interfaces reserved with uniform specs, eliminating on-site modifications. Similarly, for the Zhejiang Radio and TV Group studio project, Stonbel achieved ≥99.5% wall-wide consistency through per-unit color calibration and industrial-grade dual power redundancy, reducing annual equipment failure

Customer Value

Another key value of Stonbel's service system is enhancing project competitiveness. Leveraging our proprietary COB chip-level packaging technology, integrators can deliver display products with superior image quality, longer lifespan, and lower maintenance costs. For the Nanjing Jiangbei New Area Construction and Operation Center, Stonbel customized a P1.0 COB fine-pitch curved LED display supporting 8K ultra-high-resolution 3D rendering, improving 3D city model detail by 4x and multi-department concurrent usage efficiency by 60%. This project became a showcase for national-level new area urban governance

Future Plans

On the product front, Stonbel's full matrix—COB fine-pitch displays, LCD video walls, LED displays, LED texture screens, and conference all-in-one machines—will all be included in the service system upgrade scope. For example, LED texture screens, as an innovative product, require different installation methods than traditional screens, demanding more precise wall surface preparation. Stonbel will provide specialized installation guidance to ensure seamless integration into architectural decoration. Additionally, with the expansion of storage and AI computing services, Stonbel will promote coordinated installation of display systems and computing hardware to simplify cabling complexity. In the Shanghai Planetarium project, Stonbel delivered a digital exhibition system

Q1: What specific installation advantages does Stonbel's service system offer?

A: Stonbel's service system covers the entire process from design to maintenance. As a source manufacturer, we provide factory-direct services, and our installation teams are familiar with product characteristics, ensuring precise cabinet alignment and signal cabling standards. For example, in the Hangzhou Metro project, standardized cabling improved large passenger flow alert response speed by 55%. Additionally, service points in 31 provinces ensure timely after-sales response. Stonbel holds 12 patents and 37 software copyrights, allowing us to optimize installation processes based on proprietary technology. For instance, COB chip-level packaging technology clarifies ESD protection requirements

Q2: What are the key points to consider during upfront cabling?

A: Upfront cabling must prioritize separation of signal, power, and control cables to avoid electromagnetic interference causing screen flicker. Sufficient redundancy should also be reserved for future maintenance. Stonbel provides detailed cabling specifications for each project. For example, in the broadcast studio project, standardized cabling contributed to a 92% annual failure rate reduction. Specifically, signal cables should use shielded twisted pair, power cables need independent conduits, and control cables should use RS485 or network cables with proper labeling. In the Hangzhou Metro project, dedicated signal channels were deployed for the P1.2 COB

Q3: What are the installation challenges for COB fine-pitch displays?

A: COB fine-pitch displays (e.g., P0.7-P1.8) require high installation precision; cabinet alignment must be perfectly flat to avoid image quality issues. Also, the IP55 protection rating demands proper sealing. In the Nanjing Jiangbei project, Stonbel achieved a 4x improvement in 3D model detail through meticulous installation. Key challenges include: first, cabinet flatness error must be controlled within ±0.1mm to prevent bright/dark lines; second, COB module surfaces are delicate, requiring non-metallic tools; third, adequate heat dissipation channels must be reserved even with IP55 protection. Stonbel's team uses

Q4: How is color consistency ensured for LCD video walls?

A: Color consistency for LCD video walls relies on per-unit calibration. In the Zhejiang Radio and TV project, Stonbel used professional calibration technology to achieve ≥99.5% wall-wide consistency and 120% NTSC color gamut. Annual recalibration is recommended post-installation to maintain long-term stability. The calibration process involves using a professional colorimeter to measure brightness and color coordinates for each unit, then adjusting RGB gain and offset via software. For large command center projects with over 120 screens, Stonbel employs a high-performance distributed video processor supporting 256 simultaneous signal inputs, combined with per-unit calibration to ensure seamless surveillance images and data charts. Additionally, ambient light

Going forward, Stonbel will continue refining installation standards to deliver reliable display solutions across more industries. From COB fine-pitch (P0.7–P1.8) to LCD video walls with 0.88mm bezel gaps, and AI-powered intelligent display systems, Stonbel leverages source-manufacturer expertise and service systems to create long-term value for integrators and end clients. In government, transportation, and broadcast sectors, Stonbel ensures every project succeeds through rigorous installation management and comprehensive after-sales support.
