In judicial digitalization, court proceedings, evidence display, remote interrogation, and command dispatch impose stringent requirements on display equipment. As a top-10 LED display manufacturer, Stonbel specializes in commercial displays, leveraging proprietary COB chip-level packaging to deliver court-specific COB fine-pitch displays. These feature pixel pitches from P0.7 to P1.8, 3840Hz refresh rate, IP55 protection, and lifespan exceeding 100,000 hours. This article examines the technical foundations of its energy efficiency, heat dissipation, and 7×24 reliability, offering selection guidance for low-voltage integrators and AV contractors.
Special Requirements for Court Display Systems

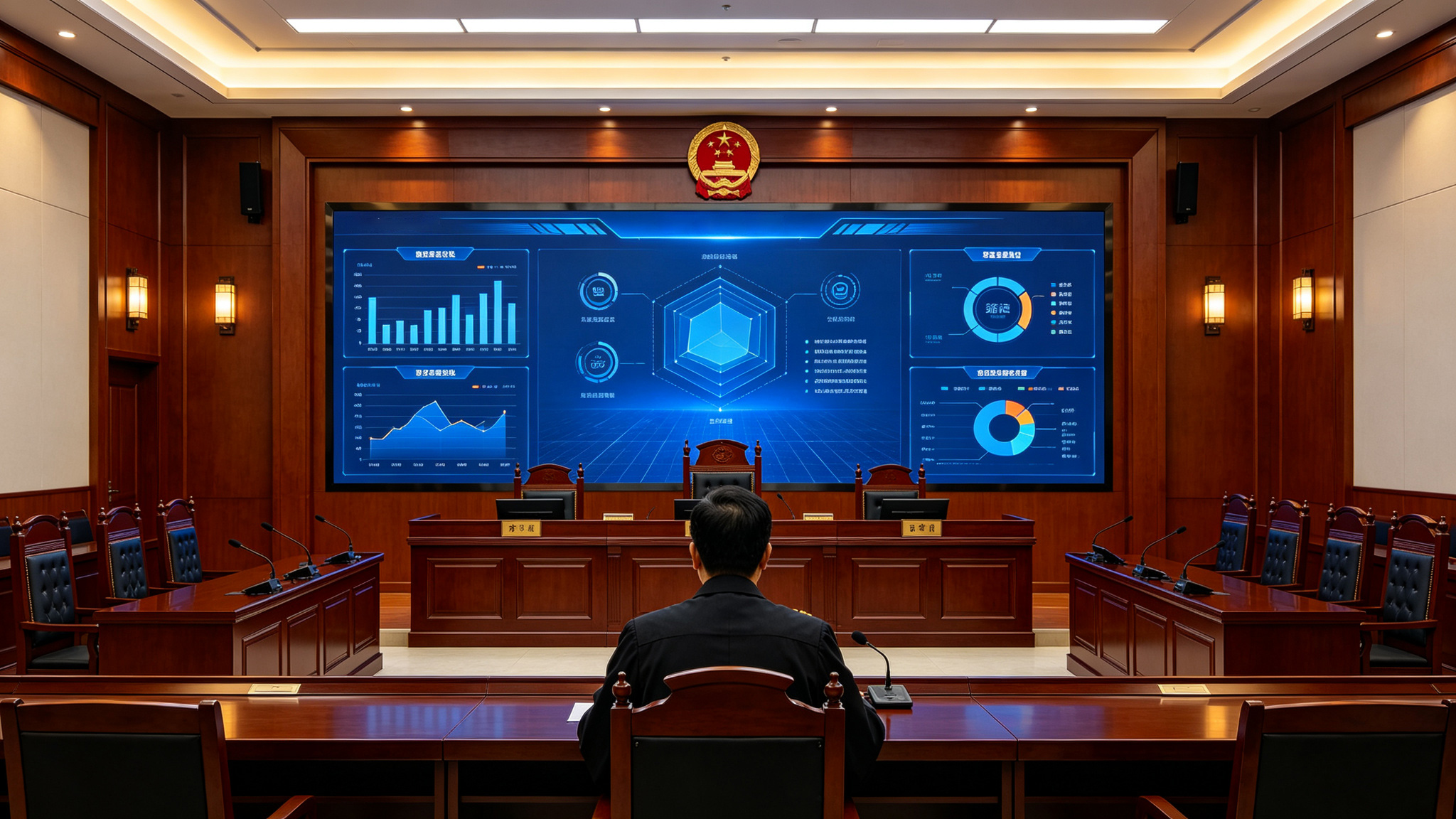

As the national judicial authority, a court's display systems must not only meet daily needs such as trial recording and evidence presentation, but also withstand demanding scenarios like remote interrogation, emergency command, and classified case hearings. Courtrooms often require continuous, long-duration operation from morning to afternoon sessions without any screen flicker or system failure. Evidence presentation demands exceptional detail clarity to faithfully reproduce minute elements like handwriting and seals. Remote
Energy Efficiency: Full-Chain Optimization from Chip to System
The energy efficiency of the Court COB fine-pitch LED display results from systematic optimization spanning from chip-level packaging to system-level control, not a single technology. At the chip level, COB packaging directly bonds the LED chip to the substrate, reducing resistance losses from traditional brackets and leads, significantly improving electrical-to-optical conversion efficiency. Real-world data shows that at equal brightness, COB displays consume approximately 25%-30% less power than traditional SMD displays. At the driver level, Stonbel
Thermal Performance: Military-Grade Hardware Assurance
Thermal performance directly determines the lifespan and stability of LED displays. Traditional SMD displays, with dense lamp bead pins, concentrate heat at solder joints, leading to issues like cold solder joints and dead pixels. COB packaging, however, mounts chips directly onto the PCB, allowing heat to rapidly conduct through the substrate to heat sinks, shortening the thermal path by over 60%. Stonbel's Court COB fine-pitch LED display features a military-grade thermal dissipation structure, combining thermally conductive silicone
7×24 Reliability: From Hardware Redundancy to Intelligent Maintenance
Court proceedings cannot be interrupted, so display reliability must meet military-grade standards. Stonbel's Court COB fine-pitch LED display incorporates a four-tier reliability assurance system spanning hardware design and software maintenance. First, power redundancy: core models feature dual hot-swappable power supplies, with the backup seamlessly taking over within milliseconds if the primary module fails, preventing black screens or flicker. Second, signal redundancy: dual signal input with automatic switching ensures the display continues
Integrator Value: Direct Factory Supply and Full-Process Support
For low-voltage integrators and AV engineering firms, the Court COB fine-pitch LED display is not just a technical product but a key tool for expanding high-end projects and enhancing profitability. As the source manufacturer, Stonbel offers direct factory pricing, eliminating intermediary markups and reserving above-average profit margins for integrators. Additionally, we enforce strict market protection policies, securing regional agency rights to prevent order poaching and ensure project revenue stability. During the bidding phase, Stonbel provides comprehensive free
Q1: How energy-efficient is the Court COB fine-pitch LED display?
A: Stonbel's Court COB fine-pitch LED display employs three-tier energy-saving technology: First, COB chip-level packaging reduces pin resistance losses inherent in traditional SMD processes, improving electrical-to-optical conversion efficiency by approximately 15%. Second, intelligent adaptive brightness technology automatically adjusts screen luminance based on ambient light, intelligently switching between high daytime brightness and low nighttime brightness, saving over 30% energy compared to fixed-brightness modes. Third, multiple sleep and standby modes automatically activate low-power states during recesses or non-working hours. For a court deploying a 60m² P1.2 display running 12 hours daily, annual
Q2: How is the thermal performance of the Court COB fine-pitch LED display?
A: The product features a military-grade thermal dissipation structure, with performance far exceeding industry averages. Specifically, COB packaging mounts LED chips directly onto the PCB substrate, shortening the heat conduction path by over 60% compared to traditional SMD processes. Combined with high-thermal-conductivity silicone grease and aluminum heat sink modules, it achieves efficient heat spreading. In tests under 40°C ambient temperature and 7×24-hour full-load operation, the screen surface temperature remained stably below 45°C, chip junction temperature stayed under 85°C, and temperature uniformity deviation did not exceed ±3°C. The IP55 protection rating effectively prevents dust and moisture ingress, avoiding heat
Q3: Can the Court COB fine-pitch LED display guarantee 7×24-hour stable operation?
A: Absolutely. Stonbel's Court COB fine-pitch LED display incorporates a four-tier reliability assurance system spanning hardware and software: First, dual power supply redundancy (on core models) with millisecond-level seamless switching if the primary power fails. Second, dual signal source automatic switching to ensure uninterrupted display. Third, an intelligent fault detection system scans the entire screen status every 30 seconds, providing immediate alerts upon anomalies. Fourth, remote maintenance capabilities allow engineers to
Q4: What is the lifespan of the Court COB fine-pitch LED display? Are maintenance costs high?
A: The LED chips have a rated lifespan of ≥100,000 hours, equivalent to over 11 years of 24-hour daily continuous use; based on a court's actual 12-hour daily operation, lifespan extends beyond 20 years. Regarding maintenance costs, the intelligent low-consumption, minimalist-maintenance design reduces annual maintenance costs by over 70% compared to traditional equipment. Specifically, 90% of basic issues (such as signal interference or parameter drift) can be resolved through remote diagnostics without requiring on-site engineer visits. COB packaging eliminates the pin cold-solder risk of traditional SMD lamp beads, with a dead pixel rate below one per million, significantly reducing the frequency of lamp bead replacements. Stonbel
Stonbel's court COB fine-pitch displays, built on proprietary COB chip-level packaging, demonstrate robust energy efficiency, heat dissipation, and 7×24 reliability through active participation in industry standards and deep engagement in judicial scenarios. As a top-10 LED display manufacturer, Stonbel ensures high profit margins and worry-free delivery for integrators via factory-direct supply and full-process support. Moving forward, Stonbel will continue to advance court informatization, safeguarding judicial fairness with military-grade quality and driving the commercial display industry toward greater efficiency and safety.
