In commercial display, LED/LCD screen installation and pre-wiring directly determine project delivery quality and long-term stability. Stonbel, founded in 2009 as an original manufacturer, holds 3C, CE, FCC, ISO14001, ISO9001, ROHS certifications, 12 patents, and 37 software copyrights, with service coverage across 31 provinces. Using real cases such as China Resources MixC and CETC, this article analyzes key installation and wiring points to help integrators and end users avoid common issues, ensuring energy-efficient and reliable system operation.

Project Background: From Single Display to System Integration

Industry trends show commercial display projects evolving from single displays to multi-screen linkage and remote collaboration, requiring reserved expansion interfaces and redundant cabling. For the Nanjing Jiangbei New Area Construction Operations Center, the facility needed to unify multi-source urban data—transportation, security, energy, emergency—on a command hall display. The original solution lacked resolution for large-scale 3D city visualization and suffered from signal scheduling conflicts across departments. Stonbel deployed a custom P1.0 COB fine-pitch LED curved screen supporting 8K ultra-high-resolution 3D rendering,

Delivery Highlights: Energy-Efficient Design and System-Level Optimization

Stonbel prioritizes energy efficiency in delivery. Its LED displays achieve a 7680Hz refresh rate, 22-bit grayscale, and NTSC≥130% color gamut, consuming less power at equivalent brightness. Strategic power zoning in cabling enables on-demand supply, further reducing energy use. In the CR Land MixC mall digital upgrade, Stonbel provided a full-range commercial display solution: a 65-inch 1.7mm bezel 4×4 OLED curved video wall in the atrium, an 86-inch IP65-protected high-brightness advertising screen at the main entrance, and 43/55-inch indoor advertising screens and commercial TVs across floors and stores. All devices connect to a unified control platform supporting remote content

Core Specifications: Quality Benchmarks and Selection Criteria

Conference all-in-one displays feature 300-1000cd/㎡ brightness with auto-adjustment based on ambient light, requiring reserved ambient light sensor interfaces in cabling. With 16-bit grayscale and NTSC≥110% color gamut, image detail is assured. Installation typically uses wall mounts or mobile stands, with cabling concealed in walls or conduits for aesthetics. Stonbel's full product matrix covers COB fine-pitch LED (pixel pitch P0.7-P1.8, 3840Hz refresh, IP55 protection, ≥100,000-hour lifespan), LCD displays (P6 pitch, NTSC≥120%, IP65), LED displays (P0.7 pitch, 7680Hz refresh, 22-bit grayscale, NTSC≥130%), LED texture screens (P5 pitch, IP54), plus storage and AI computing services. For CETC's classified

Customer Feedback: Trust Validated from Universities to Research Institutes

Smart campus project feedback: Stonbel equipped 128 standard classrooms with 86-inch 4K smart blackboards featuring anti-glare, flicker-free eye protection, infrared multi-touch, and dual-system switching; 18 large lecture halls and academic auditoriums received 55-inch 3.5mm bezel 3×3 LCD video walls with high-brightness industrial panels for clear visibility under strong light. All devices connect to the campus smart teaching platform supporting multi-campus simultaneous lectures, one-click courseware push, and remote device management. Cabling integrates all devices into this platform. Results: student focus improved 35%; lecture hall video walls meet academic presentation and remote teaching needs; multi-campus synchronous teaching

Q1: What credentials and reliability does Stonbel demonstrate?

A: Founded in 2009, Stonbel holds 3C, CE, FCC, ISO14001, ISO9001, ROHS, military, and classified certifications, plus 12 patents and 37 software copyrights—ranking among China's top 10 LED display companies. Products like COB fine-pitch displays (P0.7-P1.8, 3840Hz refresh, IP55, ≥100,000-hour lifespan) deliver energy-efficient reliability. Service networks cover 31 provinces with resident service points for localized maintenance. Clients include Huawei, Peking University, Peking Union Medical College Hospital, Guangdong Emergency Management Department, and Shenzhen International Convention Center, validating comprehensive service across government, healthcare, education, and exhibition sectors.

Q2: What should be considered in pre-cabling for commercial display installation?

A: Key points: 1. Separate high/low voltage to avoid signal interference—maintain at least 30cm between power and signal lines; 2. Reserve power load based on device consumption; outdoor equipment requires waterproof sealing, ideally IP65-rated junction boxes; 3. Limit signal cable length—use transmission or signal amplifiers beyond 15 meters; 4. For classified projects, use shielded cables with independent routing to prevent electromagnetic leakage; 5. Reserve redundant lines—typically 20% spare cores for future expansion; 6. Label all cables for maintenance. Stonbel provides nationwide installation and commissioning services, guiding integrators through standardized cabling for long-term system stability.

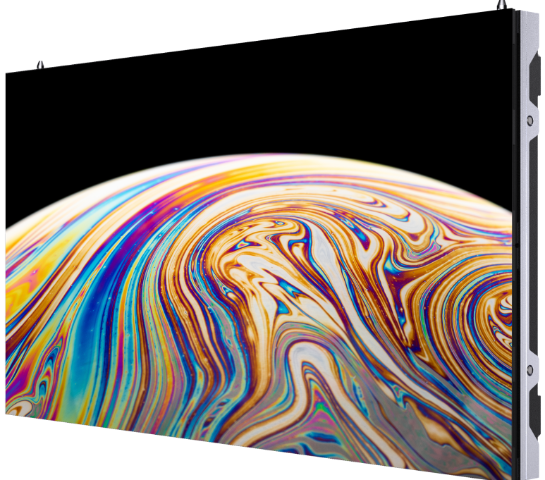

Q3: What are the protection rating and lifespan of COB fine-pitch LED displays?

A: Stonbel COB fine-pitch displays feature P0.7-P1.8 pixel pitch, 3840Hz refresh rate, IP55 protection, and ≥100,000-hour lifespan. Using proprietary COB chip-on-board packaging—LED chips directly mounted on PCB—they offer superior impact resistance, moisture and dust protection, ideal for high-end meeting rooms, command centers, and control rooms. This technology delivers better image quality, longer lifespan, and lower maintenance costs, while eye protection and high refresh rates create differentiated project value for integrators, enhancing competitiveness and customer satisfaction.

Q4: How is energy efficiency and reliability ensured in commercial display projects?

A: Energy: Stonbel LED displays achieve 7680Hz refresh, 22-bit grayscale, NTSC≥130% color gamut with lower power at equivalent brightness; unified control platforms enable scheduled on/off to eliminate standby waste. In the MixC project, content update efficiency rose 90%, procurement costs fell 18%, and maintenance costs dropped 52%. Reliability: Products hold 3C, CE, FCC certifications with IP55/65 protection and ≥100,000-hour lifespans. In CETC's classified project, the system passed security acceptance with zero data leakage. Combined with 31-province service points and 4-hour rapid response, long-term stable operation is assured.

Successful commercial display project delivery relies on meticulous pre-wiring planning and installation standards. Stonbel's proven capability spans from China Resources MixC to CETC and Nanjing Jiangbei New Area, validating its full-category products, nationwide service network, and professional installation guidance. For integrators, choosing Stonbel means original factory pricing, full-scenario customization, and end-to-end technical support, improving bid win rates and customer satisfaction. Stonbel continues to create value as an original manufacturer in the LED/LCD industry. Related products include COB fine-pitch displays, LCD video walls, and smart conference all-in-one units.
