Corporate meeting rooms demand high clarity and stability from display systems. LCD video walls, with narrow bezels, high resolution, and low power consumption, have become the mainstream choice for medium-to-large spaces. Stonbel focuses on LCD video walls, COB fine-pitch LED, and conference all-in-one displays, offering quantifiable selection criteria and engineering practices—from packaging, brightness uniformity, and bezel control to scenario coordination—enabling efficient, reliable display deployment.
Introduction
As the core venue for decision-making and collaboration, the clarity, stability, and usability of the display system in an enterprise meeting room directly impact meeting efficiency. LCD video walls, with their high resolution, narrow bezels, and low power consumption, have become the mainstream choice for medium-to-large meeting rooms. Meanwhile, commercial display products such as fine-pitch LED, COB packaging, and all-in-one conference displays offer differentiated solutions for various spaces and budgets. This article analyzes the selection essentials and practical value of Stonbel's full commercial display product line from the perspectives of display technology principles, packaging processes, scenario adaptation, and engineering implementation. Readers will gain quantifiable performance metrics, real project cases, and maintenance guidelines to make better procurement and deployment decisions.

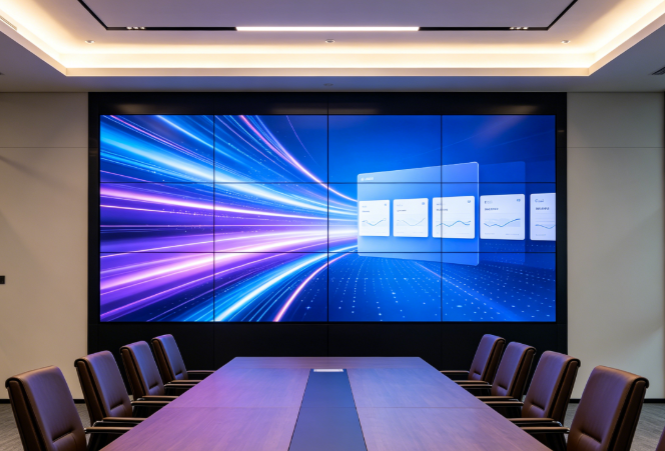

I. LCD Video Wall: Display Principles and Key Parameters
LCD video walls modulate light through the alignment of liquid crystal molecules under an electric field, with a backlight module outputting the image. Key metrics include bezel width, brightness, contrast, and color reproduction. Stonbel LCD video walls are available in three bezel options: 3.5mm, 1.8mm, and 0.88mm. The 0.88mm bezel is virtually seamless at a 3-meter viewing distance. Typical brightness is 500cd/m², ensuring clear readability under ambient meeting room lighting. Industrial-grade panels support 7×24 continuous operation with a rated lifespan of 60,000 hours. Built-in image processing supports 4K signal input and multi-screen splicing with roaming, meeting the display needs of detailed content such as financial reports and engineering drawings.
II. COB Packaging: Advantages in Commercial Display Walls
COB (Chip on Board) packaging directly bonds LED chips to the substrate and covers them with a protective adhesive layer, unlike traditional SMD surface-mount technology. Applied to fine-pitch LED displays, this technology significantly enhances moisture, dust, and impact resistance. Stonbel COB commercial display walls cover pixel pitches from P0.9 to P1.5, with brightness up to 800cd/m², maintaining clear grayscale levels even in brightly lit meeting rooms. COB packaging also improves heat dissipation, reducing surface temperature rise by approximately 15% and extending driver IC lifespan. For meeting rooms requiring long-duration static display, COB products maintain a light decay rate below 5% over three years—2 percentage points lower than SMD products—effectively reducing long-term maintenance costs.

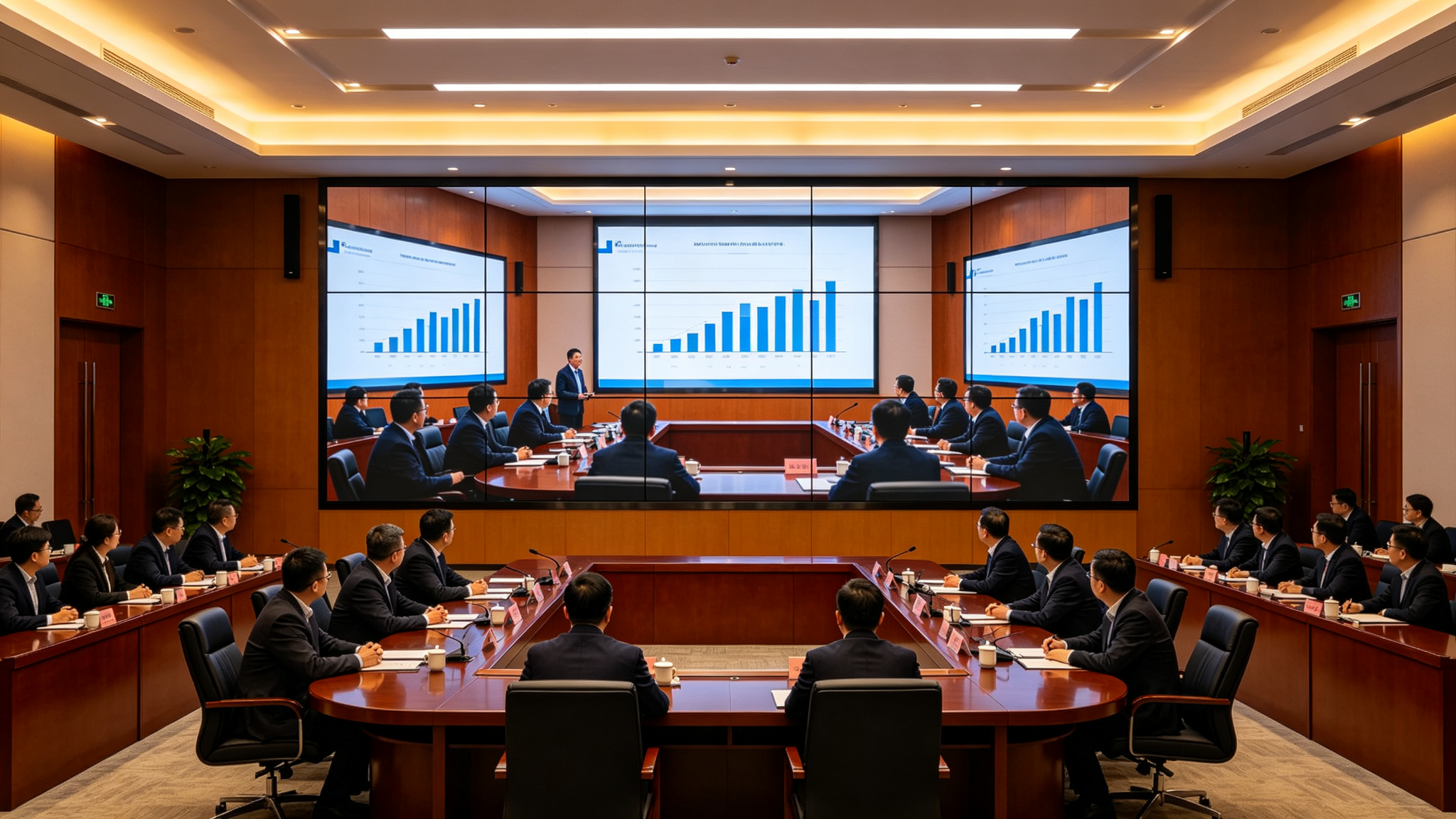

III. Synergy Between All-in-One Conference Displays and LCD Video Walls
All-in-one conference displays integrate display, touch, audio/video, and wireless screen sharing, ideal for decision-making rooms with fewer than 10 people. LCD video walls suit training rooms or command centers with 20 or more people. These two are not mutually exclusive but complementary in space. Stonbel all-in-one conference displays feature an infrared touch frame supporting 20-point touch and 0.5mm writing accuracy, with built-in Android and Windows dual systems for direct use of video conferencing software. In hybrid deployments, a meeting room can be configured with an 86-inch all-in-one display as the main screen, flanked by 55-inch LCD video walls as extended display areas, creating an information architecture of one-screen collaboration and multi-screen distribution. This combined solution has been deployed at multiple corporate headquarters, reducing average meeting preparation time by about 30%.
IV. Stonbel Full-Series Commercial Display Engineering Practice

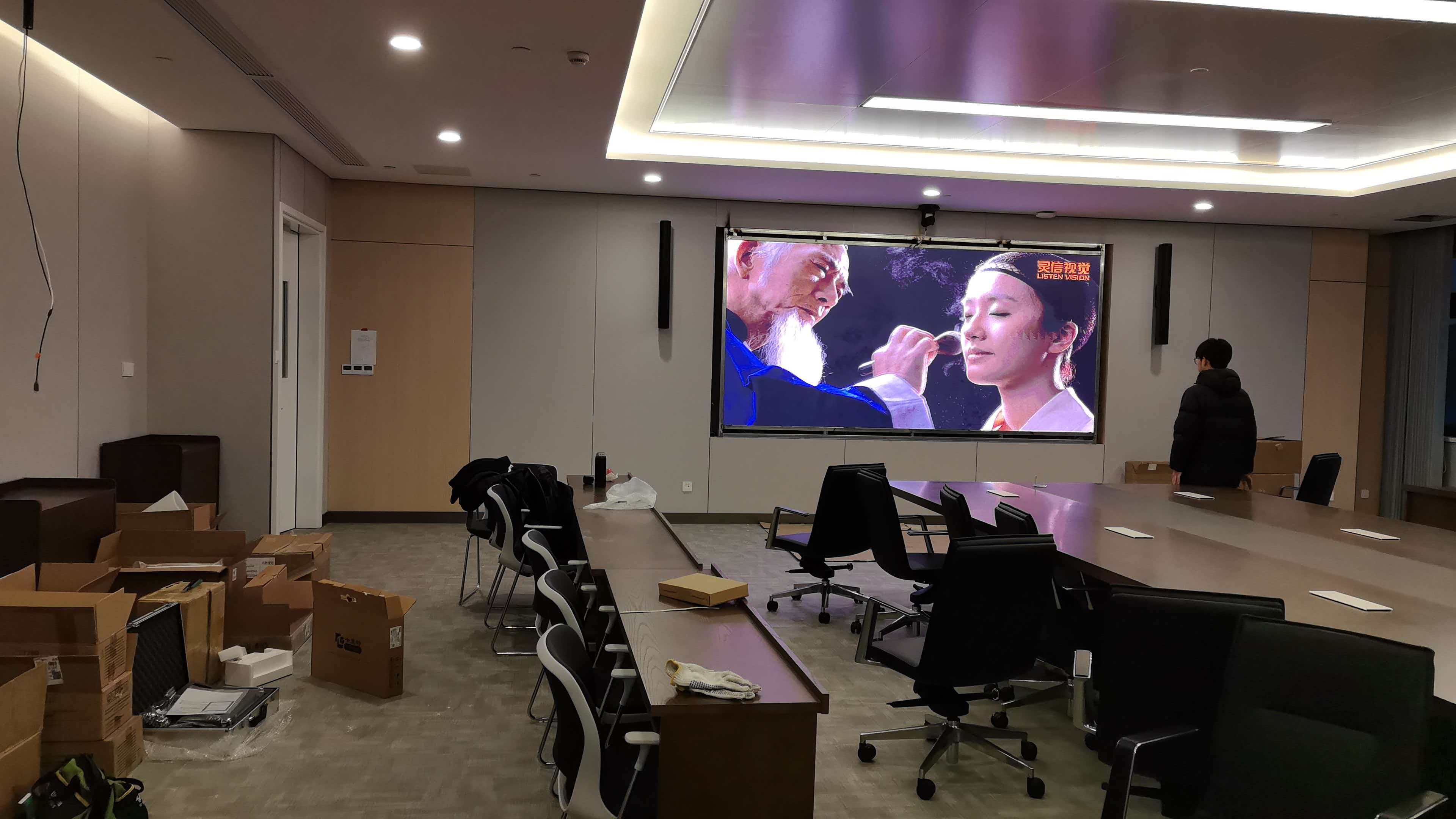

As a full-series commercial display manufacturer, Stonbel's product line covers LCD video walls, fine-pitch LED displays, COB displays, and all-in-one conference displays. In a multi-function hall project for a technology company, the client required both presentation and remote conferencing capabilities in a 120m² space. Stonbel deployed a 126-inch COB fine-pitch LED main screen (P1.2), with two 55-inch LCD video walls on each side as auxiliary information screens. Actual operational data showed: main screen brightness uniformity reached 95%, color deviation ΔE≤2.5; after frame-by-frame calibration, multi-screen brightness consistency error was below 3%. Post-delivery, audio-video sync latency was under 100ms, meeting lip-sync requirements for video conferencing. This case demonstrates that selecting different commercial display technologies based on actual viewing distance and ambient light achieves both cost-effectiveness and user experience.
V. Key Points for LCD Video Wall Installation and Maintenance
LCD video wall installation must strictly follow load-bearing specifications. Steel structure walls should support at least 1.5 times the total screen weight (each 55-inch video wall unit weighs approximately 35kg), with a rear maintenance access of no less than 600mm reserved. Before installation, horizontal reference line calibration is required, with height differences between adjacent screens controlled within 0.5mm. Electrical wiring uses three-phase five-wire power supply, with each screen unit protected by an independent circuit breaker to prevent single-point failures from causing system-wide power loss. For maintenance, perform pixel self-checks and color calibration monthly, using standard test patterns to verify brightness uniformity; clean dust filters and check fan speeds annually. LCD panel backlight decay accelerates with rising temperature, so the equipment room air conditioning should be set to 24±2°C, with relative humidity maintained between 40% and 60%.
VI. LED Display Selection FAQs
Conclusion
The core of an enterprise meeting room display solution lies in matching human viewing distance, ambient light, and control requirements. LCD video walls maintain a stable advantage in close-range information display through mature panel technology and ultra-narrow bezel design. COB LED displays offer a seamless, immersive experience for high-end meeting rooms with superior protection and color consistency. All-in-one conference displays simplify operation through integrated interaction. Stonbel's full commercial display product line enables standardized deployment solutions based on project budget, space dimensions, and performance metrics. Engineering practice shows that strict adherence to installation specifications and maintenance cycles ensures the display system retains over 85% of its initial performance within five years. Choosing market-verified commercial display equipment with professional installation services is a reliable path to building efficient meeting spaces.
