In the era of booming digital display demands, LED screens, with their seamless splicing, high brightness, and high flexibility, have become core display carriers in scenarios such as urban landmarks, commercial spaces, and command centers. As display systems composed of thousands of light-emitting diodes (LEDs) arranged in arrays, LED screens’ key advantage lies in true "visual boundlessness"—through pixel-level splicing technology, physical seams can be controlled to less than 0.1mm. Combined with brightness ranging from 1500 to 5000 nits (2-7 times that of LCD screens), they not only present 4K/8K ultra-high-definition images at close range indoors but also operate stably in extreme environments like outdoor strong light and low-temperature cold. They can even be arbitrarily spliced into curved, spherical, or other irregular structures according to space requirements, meeting diverse needs from precision command to creative display.

Core Parameters: Decoding the Performance of LED Screens

Among the key parameters determining LED screen performance, pixel pitch (Pitch) is the core indicator of clarity. Its value (e.g., P0.9, P3.9) represents the distance between the centers of adjacent pixels and directly correlates with the optimal viewing distance (formula: optimal viewing distance = pixel pitch × 10, in meters). Small pitches (P0.4-P2.5) are suitable for close viewing (1-5 meters), often used in command centers to display precise data; regular pitches (P3-P10) fit 5-20 meter scenarios, such as shopping mall advertising screens; and large pitches (P10+) are intended for long-distance settings like stadiums. Brightness and contrast determine image performance under different light conditions: indoor screens with 800-1500 nits avoid glare, outdoor screens require ≥3000 nits to counter sunlight, and high contrast ratios (above 10000:1) can present rich dark details, helping command centers quickly identify anomalies. Refresh rate affects the smoothness of dynamic images—above 1920Hz avoids "water ripples" during camera shooting, suitable for broadcast live streaming. Protection rating (IP Rating) acts as a "safety shield" for outdoor screens: IP65 or higher ensures dust and water resistance, and coastal areas require additional anti-salt spray treatment. Heat dissipation design guarantees 24/7 operation: passive cooling suits small indoor screens, while active cooling systems (fans/air conditioners) ensure outdoor screens’ brightness attenuation ≤10% at high temperatures.

Scenario Adaptation: Precise Selection Strategies for Six Typical Scenarios

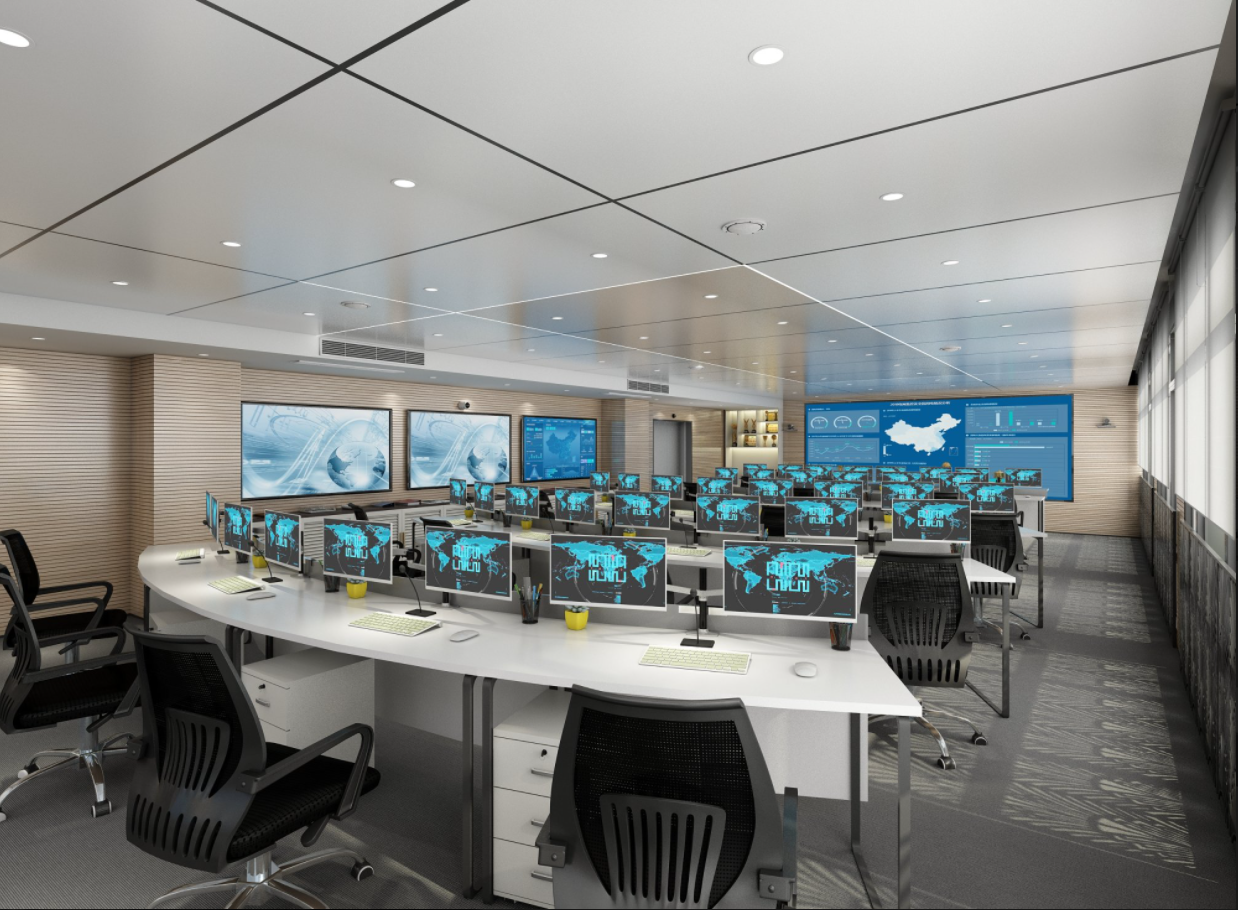

In indoor high-definition scenarios like command centers, small pitches (P0.9-P1.8) paired with COB packaging technology (improving dust and moisture resistance by 50%) are needed. A provincial emergency command center’s 100㎡ P0.9 curved screen enhanced the clarity of dark details in surveillance footage by 40% through AI image enhancement algorithms, shortening rainstorm warning response time to 5 minutes. Outdoor advertising scenarios rely on P4-P8 pitches and ≥3500 nits brightness; the naked-eye 3D screen in Shanghai’s Lujiazui, with P5.9 and a 300㎡ curved surface achieving 4000 nits, attracts over 200,000 daily visitors. Stage rental scenarios demand lightweight and high refresh rates—P2.6-P3.9 magnetic quick-release modules (single module ≤5kg, disassembly ≤10 seconds) adapt to rapid setup for concerts. A celebrity concert’s 1200㎡ P3.9 flexible screen achieved 360° circular splicing and flicker-free live streaming. Transportation hub scenarios emphasize anti-reflection and dual-power redundancy; Beijing Daxing Airport’s P3.9 screen, with a matte mask (reflectivity ≤3%) and dual-power design, maintained a 3-year "zero blackout" record. Ultra-large screens in stadiums require P5-P10 pitches with shock resistance and heat dissipation; the 3000㎡ P8 circular screen at the Qatar World Cup supported 10K resolution, accurately capturing athletes’ high-speed movements. Commercial retail scenarios favor P1.5-P3 transparent screens (40%-60% transparency); for example, a luxury store window in Shenzhen MixC merged virtual and physical displays via a P2.0 transparent screen, increasing store entry conversion by 45%.

Implementation Assurance: Full-Cycle Service Considerations for Installation and After-Sales

Installation plans must match scenario characteristics: small indoor screens use wall mounting (load-bearing ≥100kg/㎡), large outdoor screens adopt floor-standing steel frames (designed to resist level 12 typhoons), and stage screens use quick-assembly structures (100㎡ setup in 4 hours). The core of after-sales systems lies in response speed and maintenance costs. Prioritize brands offering 4-hour on-site service in the same city and 12-hour inter-provincial arrival. Front maintenance design can reduce single-module repair time to 15 minutes, while a 5-year+ warranty for core components effectively lowers long-term operational costs.

Stonbel: Building a Reliable Ecosystem with Detailed Services

In the complex application of LED screens, Stonbel’s value lies in full-cycle guarantees from planning to implementation: free on-site surveys combined with 3D modeling customize curved transparent screen solutions for new energy vehicle showrooms, accurately simulating light reflection effects; full-process quality control covers 12 inspections including chip sorting (brightness error ≤1%), and full-screen aging (72 hours without dead pixels), ensuring military-grade stability; 9 national warehousing centers enable 48-hour delivery of common modules, and remote diagnostic systems monitor screen status in real-time to pre-warn potential faults. In projects like northeast China’s -40℃ oilfield command center and the Middle East’s 65℃ desert project, the failure rate is only 1/5 of the industry average, making it a preferred choice for extreme environments.

Conclusion: Let Technology Return to Scenario Value
