Led Wave Screen

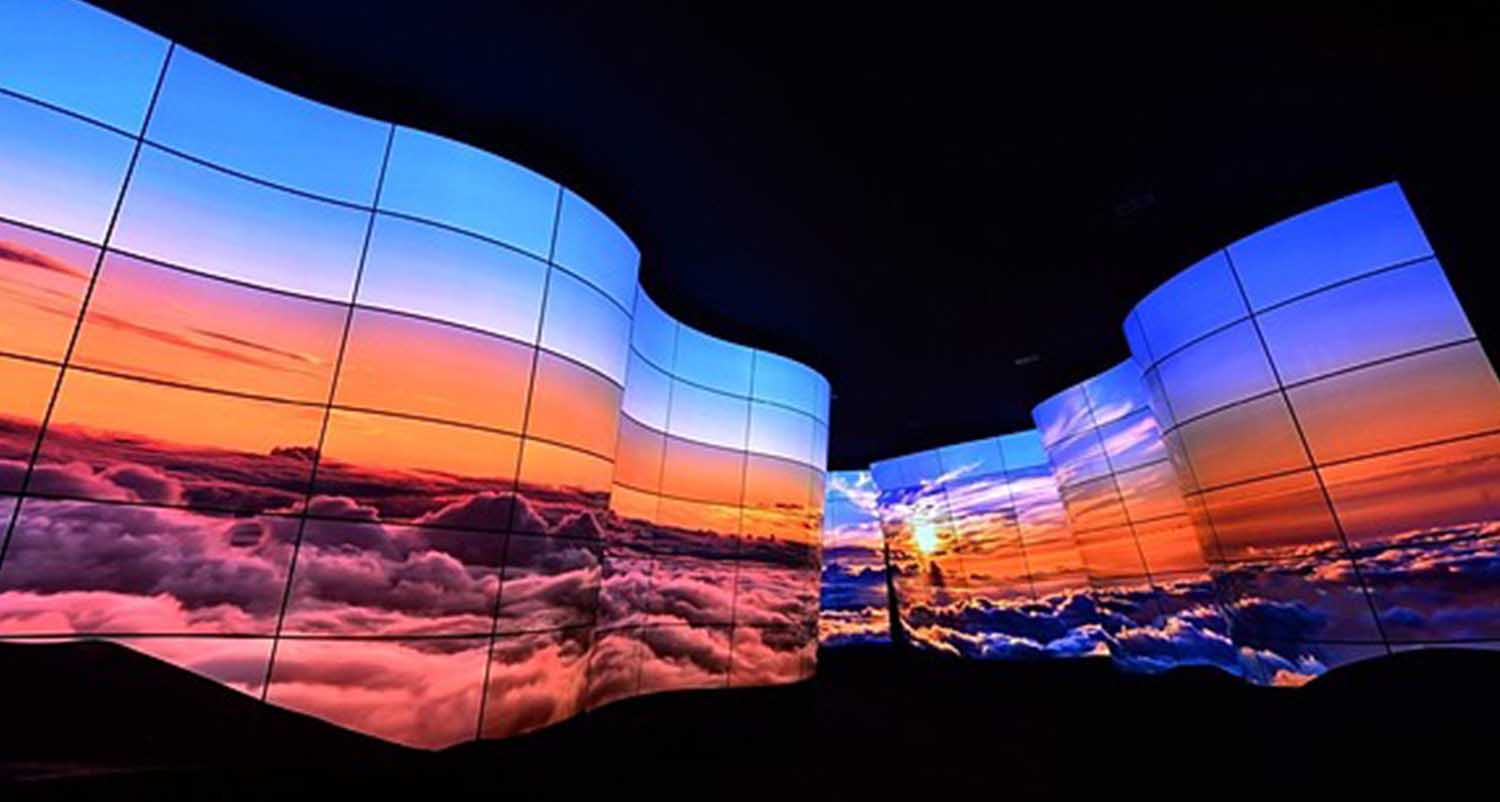

Stonbel LED wave screen is composed of several independent small LED display screen modules, each of which is an independent unit and can be controlled independently. Advanced motion control, visual control, multi machine simulcast synchronous control and other technologies are used to realize the ups and downs, expansion, movement and other actions of the LED display screen module. Under the control of the control system, the LED wave screen deduces to people the visual senses of different shapes, beautiful and immersive, It shows distinctive temperament and charm, creates an unprecedented visual feast for vision, and provides new ideas for urban landscape lighting transformation and outdoor advertising design.

Consult now

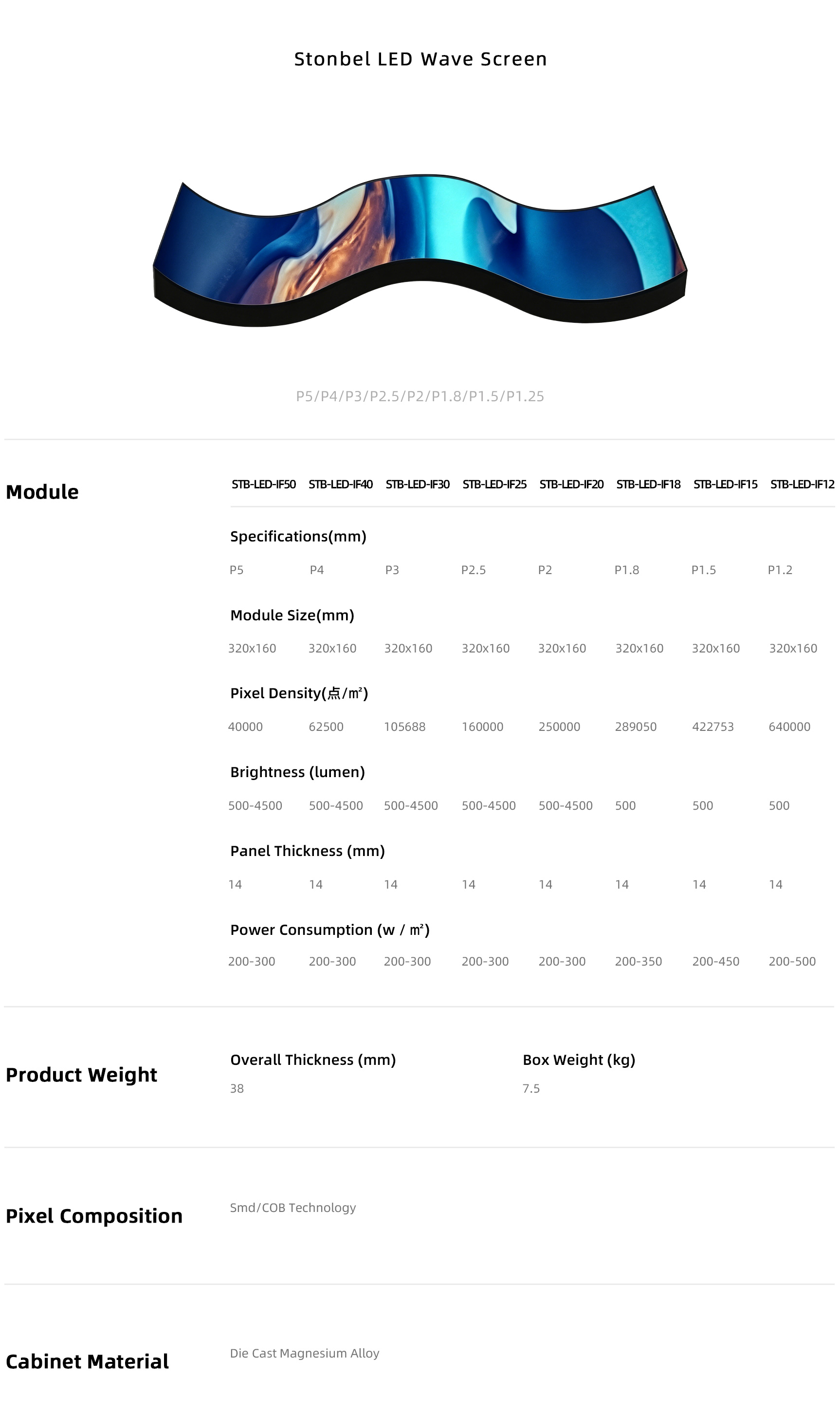

Product introduction features Parameter


Ultimate Flexible Forming Capacity

Free Bending at Random Curvature: Built with ultra-thin flexible PCB substrate and soft encapsulation technology, modules reach a minimum bending radius of R30mm, enabling concave, convex, S-shaped twisted and undulating curved shapes to fit architectural outlines perfectly.

Seamless 3D Splicing: Standard flexible modules splice in all directions to form sophisticated 3D structures including extra-long continuous waves, annular domes, spiral surfaces and irregular contours; the complete screen features invisible seams for coherent, gap-free visuals.

Architectural Integrated Design: It integrates seamlessly into building structures instead of serving as external attachments to realize the concept of "building as screen, screen as art" and elevate spatial artistic and technological aesthetics greatly.

Ultra-Light & Ultra-Thin Integrated Structure Design

Super Slim Profile: Each flexible module measures merely 3-8mm thick with unit weight of 0.5-1.5kg per square meter, 1/10~1/5 the weight of conventional rigid LED screens. It imposes minimal structural load and can be adhered or suspended directly onto glass, wood and steel substrates.
Framework-Free Flexible Mounting: No complicated steel support is required; installation via magnetic suction, adhesive backing or buckles cuts construction period by over 70% versus regular screens, ideal for temporary events and rapid setup.
High Tensile Resistance: Reinforced flexible base and anti-tear wiring withstand repeated stretching and twisting without circuit breakage or lamp bead detachment under long-term curved operation.

Curvature-Optimized HD Immersive Display

Distortion-Free Full-View Performance: Custom optical lens plus dot-by-dot calibration eliminates picture stretching, deformation and vignetting even on sharply curved surfaces. Horizontal and vertical viewing angles hit 170° with uniform color from all viewpoints.
Eye-Friendly High-Refresh Display: Driven by ≥3840Hz ultra-high refresh rate to remove flicker and ghosting for reduced eye strain during prolonged viewing; 4K/8K UHD support delivers smooth dynamic video playback.
Wide Gamut & High Contrast Restoration: 115% NTSC broadcast-grade color gamut reproduces 281 trillion rich colors with 8000:1 ultra-high contrast for distinct light-dark gradation and stunning naked-eye 3D presentation.

High Protection for Stable All-Weather Operation

Fully Sealed Protection Technology: Outdoor wave screens adopt full epoxy potting to achieve IP65/IP67 rating with waterproof, dustproof, anti-corrosion and UV-proof capabilities, operating reliably amid extreme temperatures ranging from -30℃ to +60℃.
Efficient Natural Heat Dissipation: Ultra-thin thermally conductive base and hollow construction rely on natural air convection for effective cooling without cooling fans, enabling noiseless operation and lowered failure rate.
Low-Power Energy-Saving Design: Common cathode drive cuts overall power consumption by over 25% compared with traditional flexible screens and reduces long-term electricity expenses significantly.

Core Application Scenarios & Benefits

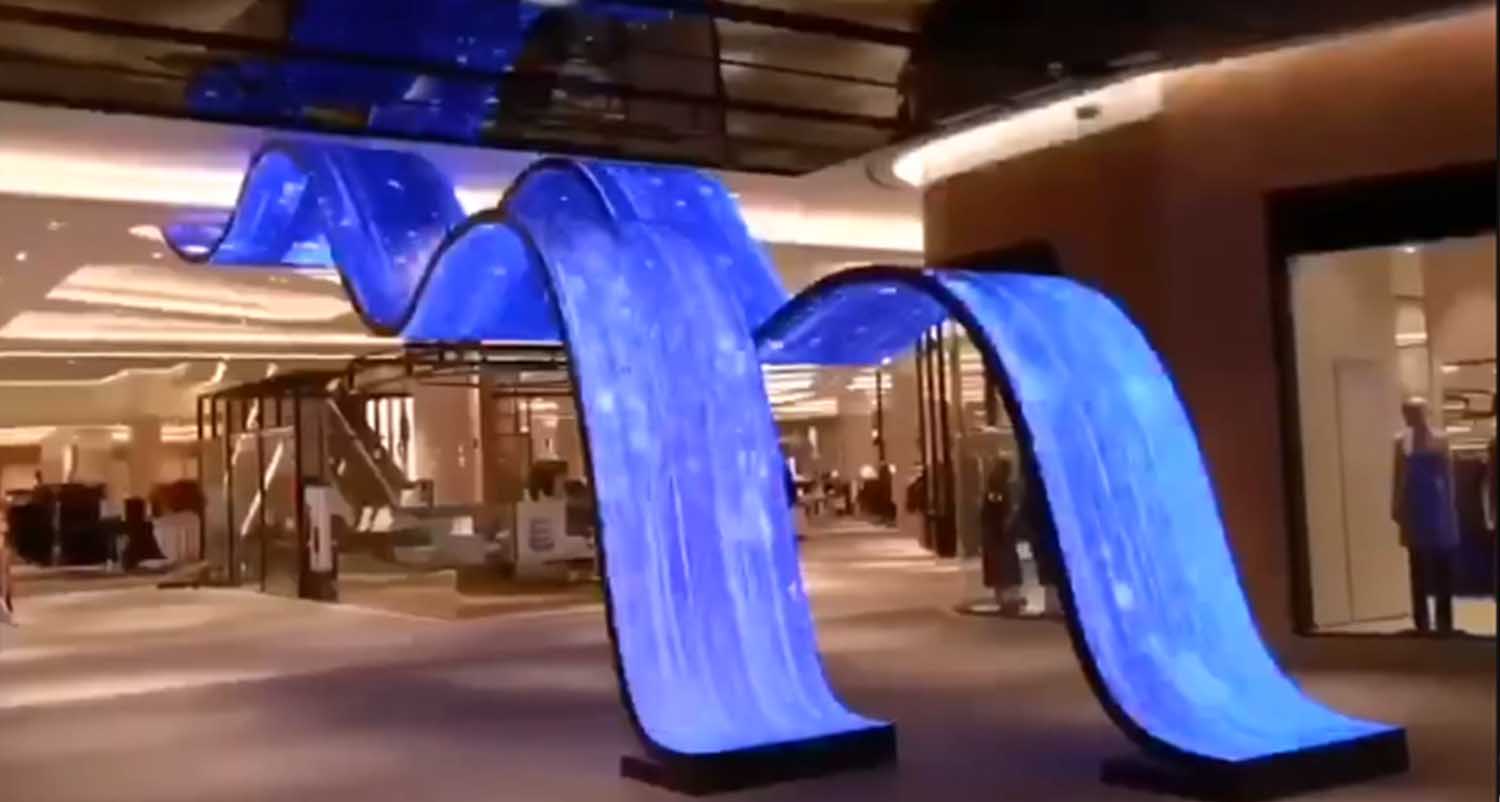

Commercial Complexes: Wavy landmark screens at atriums, entrances and corridors attract foot traffic and boost mall popularity and brand image.
Building Facades: Curved dynamic exterior cladding turns buildings into urban landmarks and raises property commercial value substantially.
Cultural Tourism Night Scenic Spots: Immersive light corridors, undulating sky screens and mountain light shows extend visitor staying duration and stimulate nighttime consumption.

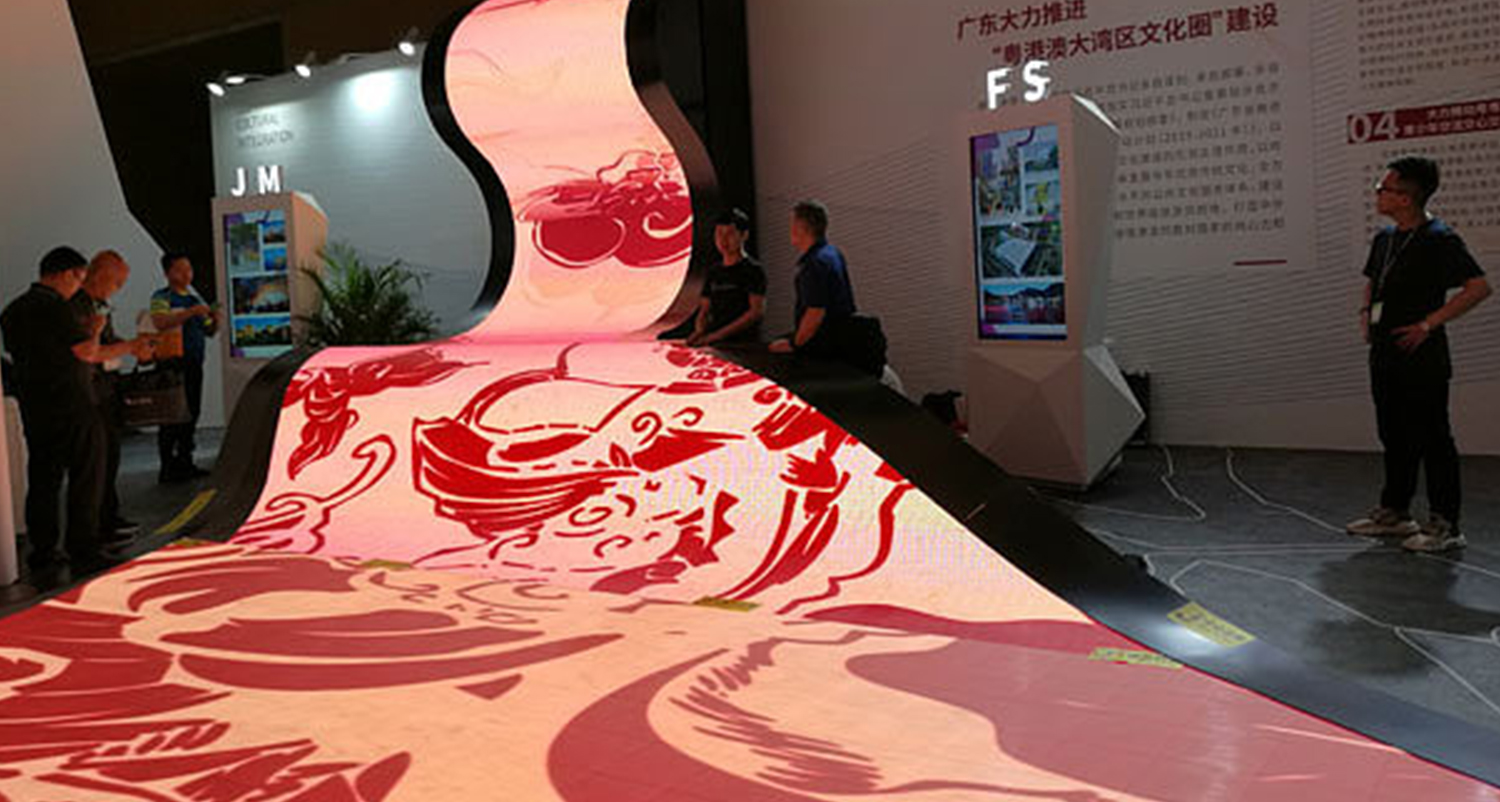

High-End Exhibition Fields: Irregular display walls for corporate showrooms, museums and science museums upgrade artistic and futuristic exhibition experience.
Stage Performance: Dynamic backdrop screens for concerts, galas and conferences deliver flowing visuals and enhance stage appeal.
